What Do Tractor Dashboard Symbols and Meanings Really Tell You?

Ever wondered what those warning lights on your tractor’s dashboard are trying to tell you?

Understanding Tractor Dashboard Symbols and Meanings is essential for keeping your equipment running safely, preventing costly repairs, and avoiding unexpected breakdowns in the field.

Whether you’re a first-time tractor owner or an experienced operator, recognizing these indicators can help you spot potential problems before they become serious.

From engine and hydraulic system warnings to battery, transmission, and maintenance alerts, each symbol serves a specific purpose.

In this guide, you’ll learn what the most common tractor dashboard symbols mean, why they appear, and the actions you should take, giving you the confidence to operate and maintain your tractor more effectively.

Quick Answer: What Do Tractor Dashboard Symbols Mean?

Tractor dashboard symbols are visual warning lights and indicator icons that show the operating condition of your tractor.

The most important symbols are the engine warning light, oil pressure warning, battery charging indicator, and engine coolant temperature warning because they alert you to problems that could damage the engine if ignored.

Green and blue symbols usually indicate normal operation, while yellow and red symbols often require attention or immediate action.

What Are Tractor Dashboard Symbols and Meanings?

Tractor dashboard symbols are standardized icons designed to communicate the condition of different systems without using words. They help operators quickly identify mechanical issues, maintenance reminders, and active operating features.

These symbols may monitor:

• Engine performance
• Hydraulic systems
• Battery charging
• Oil pressure
• Cooling system
• Transmission
• PTO (Power Take-Off)
• Four-wheel drive
• Fuel level
• Air filters
• Parking brake
• Safety systems

Although many manufacturers use similar symbols, some dashboard icons may differ between brands like John Deere, Kubota, New Holland, Case IH, Mahindra, Massey Ferguson, or Yanmar. Always compare the dashboard with your tractor’s owner’s manual for the most accurate interpretation.

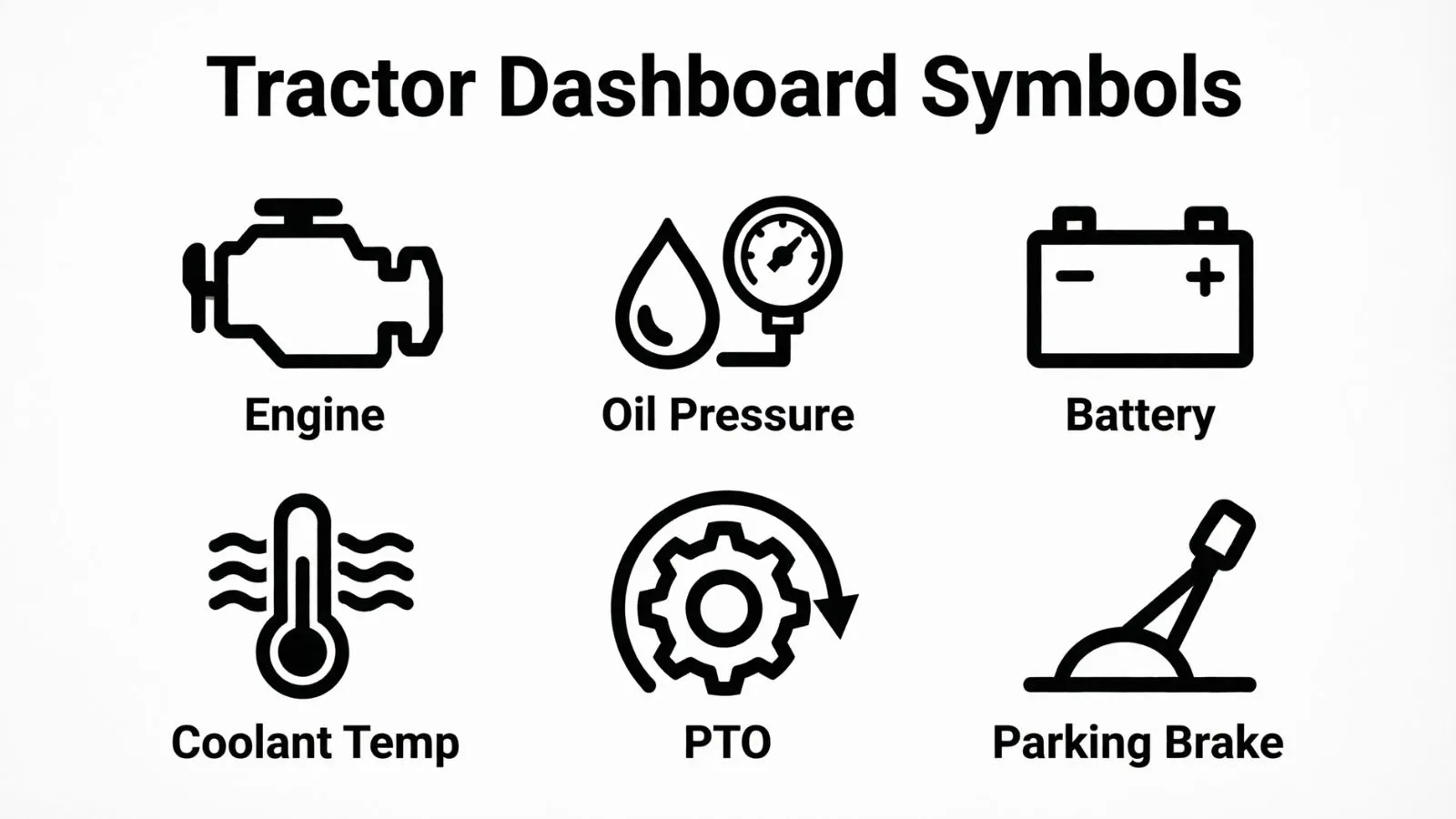

Tractor Dashboard Symbols and Meanings Comparison Table

Top Tractor Dashboard Symbols and Meanings

Engine Warning Light: Engine System Alert

The engine warning light is one of the most important indicators on any tractor dashboard. It signals that the engine control system has detected a fault. The issue could range from a loose sensor connection to a more serious engine problem.

Modern tractors use electronic control units that monitor engine performance continuously. Ignoring this warning may reduce fuel efficiency or cause expensive damage over time.

Best for: Engine diagnostics, preventive maintenance, troubleshooting, service inspections.

Oil Pressure Warning: Protecting the Engine

A red oil pressure symbol means the engine is not receiving enough lubrication. This is one of the few dashboard warnings that requires immediate attention.

Low oil pressure may result from low oil levels, a worn oil pump, clogged filter, or internal engine wear. Continuing to operate the tractor could permanently damage the engine.

Always stop safely, switch off the engine, and check the oil level before restarting.

Best for: Engine protection, maintenance checks, preventing costly repairs.

Battery Charging Indicator: Electrical System Health

The battery light tells you that the charging system is not working correctly. In many cases, the alternator may not be charging the battery while the engine runs.

A weak battery can eventually leave you unable to start the tractor, especially during busy planting or harvesting seasons.

Check battery terminals, wiring, drive belts, and charging voltage if this light remains on.

Best for: Electrical maintenance, battery testing, charging system inspections.

Engine Coolant Temperature Warning: Preventing Overheating

When the coolant temperature symbol turns red, the engine is overheating.

Common causes include:

• Low coolant
• Dirty radiator
• Faulty thermostat
• Cooling fan problems
• Blocked airflow

Allow the engine to cool before opening the radiator cap. Never remove the cap while the engine is hot.

Best for: Cooling system maintenance, engine safety, seasonal inspections.

Fuel Warning Light: Time to Refuel

The fuel symbol appears when the fuel tank reaches a low level.

Running completely out of fuel can introduce air into diesel fuel systems, requiring additional priming before restarting.

Planning refueling before the warning appears helps avoid unnecessary downtime.

Best for: Fuel management, long workdays, field operations.

PTO Indicator: Power Take-Off Status

The PTO icon shows whether the Power Take-Off is engaged.

This reminder helps prevent accidents while attaching or removing implements such as mowers, balers, tillers, or rotary cutters.

Always confirm the PTO is disengaged before servicing attached equipment.

Best for: Equipment safety, mowing, baling, tilling, implement operation.

Four-Wheel Drive Indicator: Extra Traction

The 4WD symbol confirms that four-wheel drive is active.

Using 4WD improves traction on muddy fields, steep slopes, loose soil, or snowy conditions. However, many tractors recommend disengaging it during normal road travel to reduce tire wear.

Best for: Farming, snow removal, loader work, difficult terrain.

Parking Brake Indicator: Secure Parking

This dashboard symbol reminds the operator that the parking brake is engaged.

Driving with the brake applied can reduce performance and increase brake wear. Before moving, always verify the indicator has turned off.

Best for: Safe parking, loading, transport, maintenance work.

Hydraulic System Warning: Fluid Pressure Alert

Hydraulic systems power loaders, steering, and many implements. A hydraulic warning light may indicate:

• Low hydraulic fluid
• Pump issues
• Pressure loss
• Overheating

Because hydraulic systems operate under high pressure, repairs should be handled carefully.

Best for: Loader operation, hydraulic maintenance, equipment diagnostics.

Air Filter Restriction Indicator: Cleaner Engine Air

Dusty working conditions often clog tractor air filters.

When this indicator appears, inspect and clean or replace the air filter according to the manufacturer’s recommendations.

A clean air filter improves engine efficiency, fuel economy, and overall performance.

Best for: Farm maintenance, dusty environments, seasonal servicing.

Glow Plug Indicator: Cold Weather Starting

Diesel tractors commonly include a glow plug symbol.

When starting in cold temperatures, wait until this light goes out before cranking the engine. This allows the glow plugs to warm the combustion chamber for easier starting.

Repeatedly ignoring this process may result in difficult starts and excess white smoke.

Best for: Winter operation, diesel engines, cold climates.

Seat Belt and Safety Indicator: Operator Protection

Many newer tractors include operator safety reminders such as seat belt indicators or seat occupancy warnings.

These features encourage safe operation and may work alongside rollover protection systems (ROPS).

Using safety equipment correctly significantly reduces injury risk during tractor operation.

Best for: Safe driving, training new operators, workplace safety.

Best Tractor Dashboard Symbols for Stickers, Posters, and Training Materials

While tractor dashboard icons are not designed as tattoos or decorative artwork, they are excellent for educational and safety purposes. Farms, repair shops, and agricultural training centers often use these symbols in printed guides or maintenance posters.

Useful symbols include:

• Engine warning
• Oil pressure
• Battery indicator
• Coolant warning
• PTO indicator
• Hydraulic warning
• Parking brake icon

These simple icons are easy to recognize and help operators learn dashboard warnings quickly.

Best Tractor Dashboard Symbols for Logos and Design

Dashboard symbols themselves are generally intended for equipment operation rather than branding. However, businesses related to agriculture, tractor repair, or equipment maintenance may adapt certain icons into educational graphics or instructional materials.

Good design practices include:

• Keep icons simple.
• Use universally recognized warning shapes.
• Maintain clear contrast.
• Avoid changing official safety symbols in ways that could confuse operators.
• Pair icons with clear labels in manuals or training resources.

Best Tractor Dashboard Symbols for Safety and Maintenance

Certain dashboard symbols deserve immediate attention because they protect both the tractor and the operator.

The most critical include:

• Engine warning
• Oil pressure warning
• Coolant temperature warning
• Hydraulic warning
• Battery charging light

Monitoring these indicators regularly helps extend engine life, reduce repair costs, and improve overall reliability.

Before Using Tractor Dashboard Symbols

Many tractor dashboard icons follow international safety standards, while others are specific to individual manufacturers.

Before creating educational materials or custom decals:

• Verify the meaning using your owner’s manual.
• Do not assume every tractor brand uses identical symbols.
• Use official symbols whenever possible.
• Never ignore a red warning light without investigating the cause.

Correct interpretation improves both safety and equipment longevity.

How to Understand Tractor Dashboard Symbols Correctly

Choosing the right interpretation involves more than recognizing the icon.

Keep these tips in mind:

• Read your owner’s manual first.
• Pay attention to the warning light color.
• Watch for flashing versus solid indicators.
• Perform regular maintenance.
• Address red warnings immediately.
• Schedule service if warning lights continue after restarting.

Learning your dashboard before problems occur can save significant repair expenses later.

FAQs

What is the most important tractor dashboard warning light?

The oil pressure warning and engine warning light are generally the most critical. If either appears while operating, stop the tractor safely and investigate before continuing to avoid severe engine damage.

Why is my tractor engine warning light on?

The engine warning light can indicate sensor faults, emissions issues, fuel system problems, or engine performance concerns. A diagnostic scan and owner’s manual can help identify the exact cause.

What does the red oil symbol mean?

The oil can symbol indicates low engine oil pressure. Shut down the engine immediately and check the oil level before restarting. Running the engine without proper lubrication may cause permanent damage.

What does the battery light mean on a tractor?

The battery symbol usually indicates a charging system problem. The alternator, battery, wiring, or drive belt may need inspection to restore proper charging.

Why is my coolant warning light flashing?

A flashing coolant warning often means the engine is overheating or coolant levels are too low. Allow the engine to cool before checking the cooling system.

What is the PTO dashboard symbol?

The PTO indicator shows that the Power Take-Off is engaged. Always confirm it is disengaged before servicing or connecting implements.

Are tractor dashboard symbols the same on every brand?

No. Many symbols are similar across manufacturers, but some icons and warning systems vary depending on the tractor model and brand. Always consult your owner’s manual.

What do green and yellow dashboard lights mean?

Green lights usually indicate a system is operating normally, such as headlights or four-wheel drive. Yellow lights generally warn of a condition that requires attention soon, while red lights often signal immediate action.

Final Thoughts

Understanding tractor dashboard symbols and meanings is one of the simplest ways to protect your tractor, reduce unexpected breakdowns, and work more safely.

By learning what each warning light communicates and responding quickly when something changes, you can keep your equipment reliable for years to come.

A few minutes spent recognizing dashboard symbols today can save hours of downtime and expensive repairs tomorrow.
