Have you ever noticed a warning light or unfamiliar icon appear on your vehicle’s display and wondered what it means?
Chrysler Pacifica Dashboard Symbols and Meanings can help you understand the messages your vehicle is trying to communicate before a small issue becomes a bigger concern.
From safety alerts and maintenance reminders to engine indicators and system notifications, each dashboard symbol has an important purpose.
Learning these warning lights allows you to drive with more confidence and respond appropriately when something needs attention.
In this guide, you’ll discover the most common Chrysler Pacifica dashboard symbols, their meanings, and what actions you should take when they appear.
Quick Answer: What Do Chrysler Pacifica Dashboard Symbols Mean?
Chrysler Pacifica dashboard symbols are visual indicators that tell you about your vehicle’s condition. Some icons simply provide information, while others warn you about maintenance needs or serious mechanical problems. The most important symbols include the Check Engine Light, Brake Warning Light, Oil Pressure Warning, Battery Warning, and Engine Temperature Warning because they may require immediate attention to prevent vehicle damage.
What Are Chrysler Pacifica Dashboard Symbols and Meanings?
Dashboard symbols are built into your Chrysler Pacifica’s instrument cluster to communicate important information about your vehicle. Instead of using long messages, the vehicle uses simple icons that drivers can recognize quickly.
These symbols generally fall into three categories:
- Green or Blue: Normal operation or active features
- Yellow or Amber: Warning or maintenance needed soon
- Red: Serious issue requiring immediate attention
While many dashboard symbols are standardized across modern vehicles, some Chrysler Pacifica features such as hybrid system indicators or advanced driver assistance alerts may vary depending on the model year and trim level.
Always check your owner’s manual for model-specific information if you’re unsure about a particular symbol.
| Symbol | Main Meaning | Best Use |
| Check Engine Light | Engine or emissions issue | Diagnostic inspection |
| Oil Pressure Warning | Low engine oil pressure | Stop engine immediately |
| Battery Warning | Charging system problem | Battery or alternator check |
| Engine Temperature | Engine overheating | Cool engine before driving |
| Tire Pressure Monitoring (TPMS) | Low tire pressure | Inflate tires |
| Brake Warning Light | Brake system issue | Brake inspection |
| ABS Warning | Anti-lock braking fault | Professional diagnosis |
| Airbag Warning | Airbag system malfunction | Safety inspection |
| Seat Belt Reminder | Seat belt not fastened | Driver safety |
| Fuel Warning Light | Low fuel level | Refuel vehicle |
| Traction Control Light | Stability system active or faulty | Drive carefully |
| Adaptive Cruise Control Indicator | Cruise assistance status | Highway driving |
Chrysler Pacifica Dashboard Symbols and Meanings Comparison Table

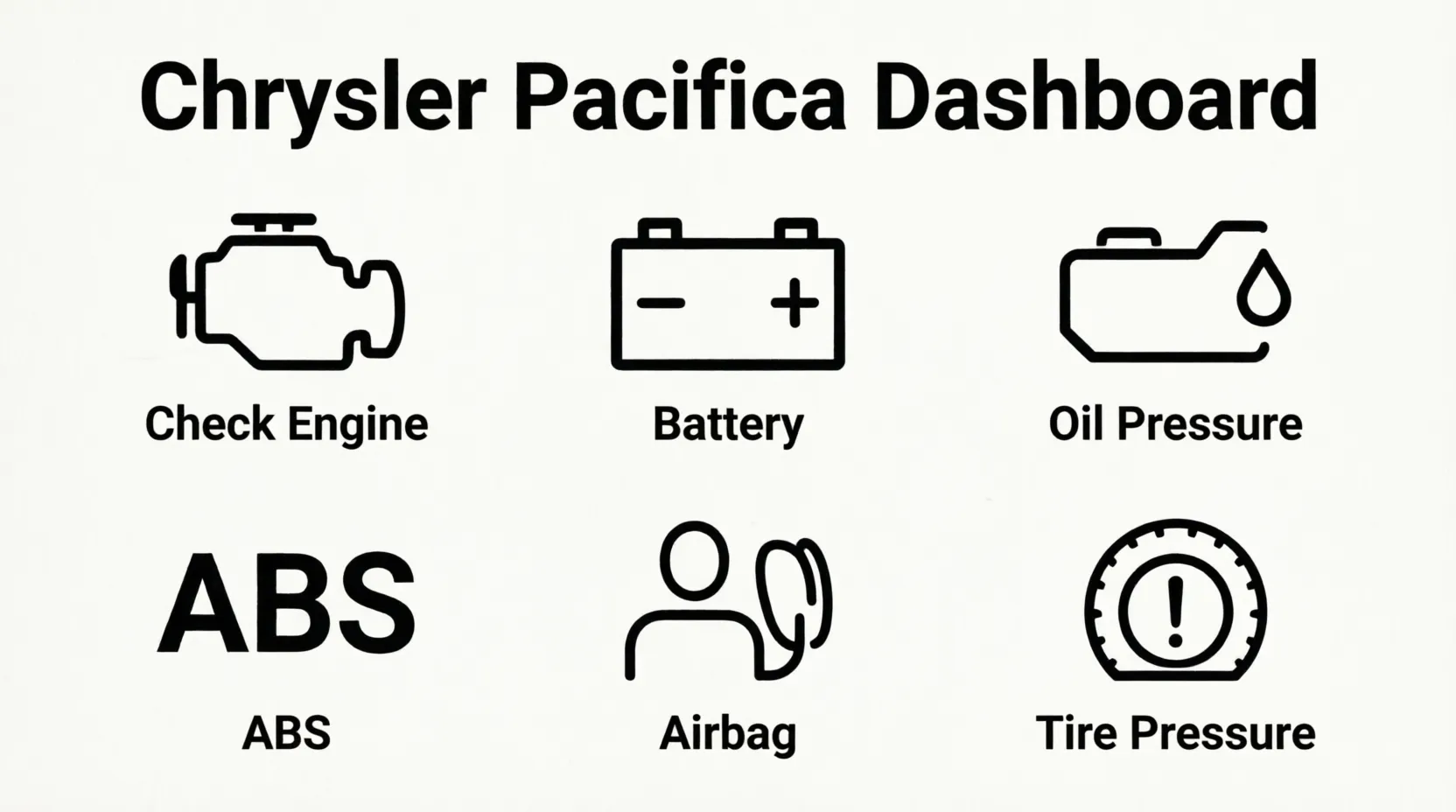

Top Chrysler Pacifica Dashboard Symbols and Meanings
Check Engine Light: Engine System Warning
The Check Engine Light is one of the most common dashboard symbols you’ll see. It can indicate anything from a loose fuel cap to an engine sensor problem or emissions system fault.
If the light stays on steadily, schedule a diagnostic check soon. If it flashes, reduce speed and seek service immediately because continuing to drive could damage the catalytic converter.
Modern Chrysler Pacifica models monitor dozens of engine systems, making this warning an early sign that something isn’t operating correctly.
Best for: Routine diagnostics, engine maintenance, preventing expensive repairs, emissions checks.
Oil Pressure Warning Light: Protect Your Engine
This red oil can symbol warns that your engine isn’t receiving enough oil pressure.
Low oil pressure may result from low oil levels, a failing oil pump, or internal engine problems. Continuing to drive could cause severe engine damage within minutes.
Safely pull over, turn off the engine, and check the oil level before driving again.
Best for: Engine protection, oil maintenance, emergency response, preventing engine failure.
Battery Warning Light: Charging System Alert
A battery-shaped icon doesn’t necessarily mean the battery is dead. More often, it signals a problem with the charging system.
Possible causes include:
- Faulty alternator
- Loose battery cable
- Worn drive belt
- Weak battery
If ignored, your Pacifica may eventually lose electrical power and stall.
Best for: Battery replacement planning, alternator inspection, electrical system maintenance.
Engine Temperature Warning: Overheating Alert
This symbol looks like a thermometer floating above waves.
When it appears in red, your engine is overheating. Common causes include low coolant, radiator leaks, cooling fan failure, or thermostat problems.
Stop driving as soon as it’s safe. Never remove the radiator cap while the engine is hot.
Best for: Preventing overheating, cooling system maintenance, protecting engine components.
Tire Pressure Monitoring System (TPMS): Low Tire Pressure
The TPMS symbol resembles a horseshoe with an exclamation point inside.
It warns when one or more tires are below the recommended pressure. Proper tire inflation improves fuel economy, braking performance, and tire lifespan.
Cold weather often triggers this warning because tire pressure naturally decreases with temperature.
Best for: Tire safety, fuel efficiency, routine maintenance, long road trips.
Brake Warning Light: Brake System Safety
A red brake symbol may indicate:
- Parking brake engaged
- Low brake fluid
- Brake system malfunction
Because your brakes are essential for safe driving, never ignore this warning.
If the parking brake isn’t engaged and the light remains on, have the brake system inspected immediately.
Best for: Brake inspections, safe driving, preventing brake failure, routine maintenance.
ABS Warning Light: Anti-Lock Brake System
The ABS light tells you there’s a problem with the Anti-lock Braking System.
Your regular brakes usually continue working, but emergency braking performance may be reduced on slippery roads.
Professional diagnostics can identify faulty wheel speed sensors or ABS module issues.
Best for: Winter driving preparation, brake diagnostics, safety maintenance.
Airbag Warning Light: Supplemental Restraint System
The airbag symbol indicates a fault in the Supplemental Restraint System (SRS).
If this light stays on, one or more airbags may not deploy properly during an accident.
Although the vehicle may drive normally, the safety system should be inspected as soon as possible.
Best for: Passenger safety, accident protection, SRS inspections.
Seat Belt Reminder: Occupant Safety
The seat belt icon reminds drivers and passengers to buckle up.
Many Chrysler Pacifica models also include audible alerts that continue until the belt is fastened.
This simple reminder helps reduce injuries during sudden stops or collisions.
Best for: Daily driving, family safety, child transportation.
Fuel Warning Light: Time to Refuel
The fuel pump icon appears when fuel levels become low.
While you may still have enough fuel to drive several miles, refueling promptly helps prevent running completely empty, which can stress the fuel pump.
Hybrid Pacifica models may display additional energy information alongside this warning.
Best for: Trip planning, preventing empty fuel tank situations, daily commuting.
Traction Control Light: Stability Assistance
This symbol usually flashes when the traction control system is actively helping maintain grip.
If it stays on continuously, there may be a fault in the stability control system.
Extra caution is recommended on wet, icy, or gravel roads until the issue is diagnosed.
Best for: Winter driving, rain safety, maintaining vehicle stability.
Adaptive Cruise Control Indicator: Driver Assistance
Many newer Chrysler Pacifica models include Adaptive Cruise Control.
The dashboard indicator shows when the system is active or unavailable.
Although this feature assists with maintaining distance from vehicles ahead, drivers should remain attentive and ready to brake or steer at any time.
Best for: Highway driving, long-distance travel, reducing driver fatigue.
Best Chrysler Pacifica Dashboard Symbols for Learning and Vehicle Safety
Although dashboard symbols are not decorative designs suitable for tattoos, several are worth learning because they provide the most valuable safety information.
The most important symbols to recognize include:
- Check Engine Light
- Oil Pressure Warning
- Brake Warning
- Engine Temperature
- Battery Warning
- Tire Pressure Monitoring System
Knowing these symbols can help you respond quickly and avoid costly repairs.
Best Chrysler Pacifica Dashboard Symbols for Manuals, Presentations, and Design
Simple dashboard icons work well in:
- Vehicle maintenance guides
- Driver education materials
- Automotive presentations
- Repair shop posters
- Fleet management training
- Automotive blogs
Because these icons are clean and universally recognized, they’re effective for instructional graphics and educational content.

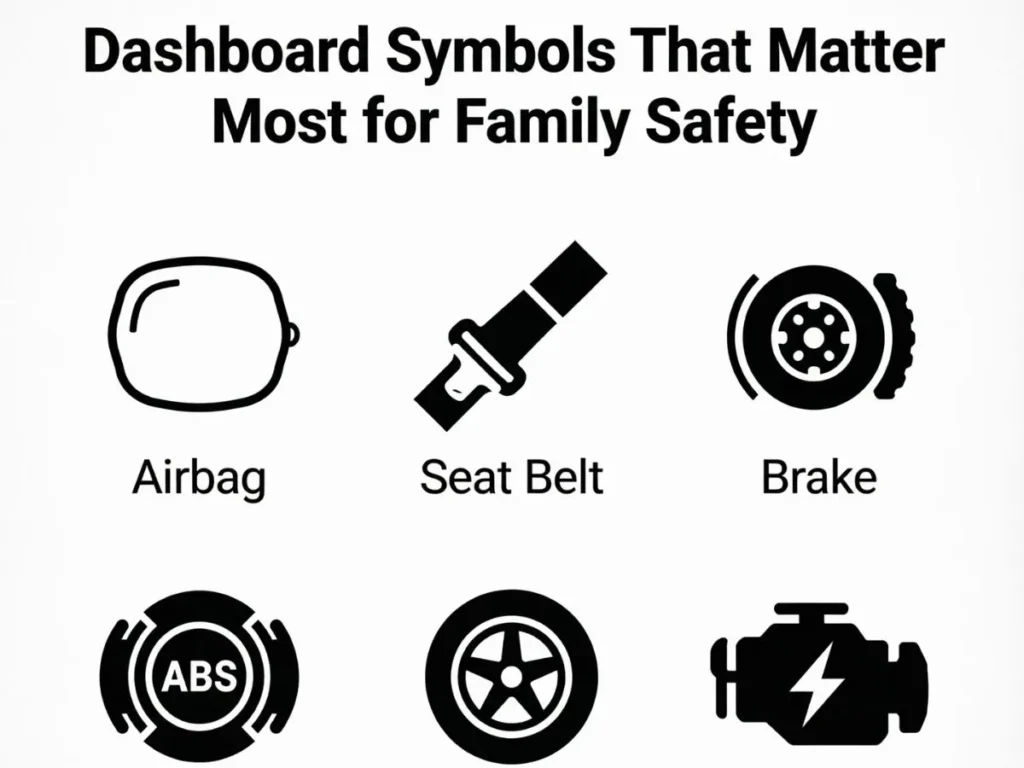

Dashboard Symbols That Matter Most for Family Safety
Families often rely on the Chrysler Pacifica for school runs, vacations, and daily transportation. Understanding safety-related dashboard symbols provides peace of mind.
Pay special attention to:
- Airbag Warning
- Seat Belt Reminder
- Brake Warning
- Tire Pressure Warning
- Engine Temperature Warning
Recognizing these alerts early helps protect passengers and reduces the risk of roadside breakdowns during family trips.
Before Using Dashboard Symbols in Designs or Products
Dashboard icons are designed primarily for vehicle communication.
Some warning symbols are standardized by international safety organizations, while manufacturers may customize certain designs for their vehicles.
If you plan to use dashboard icons in educational materials, merchandise, or commercial designs, make sure you understand their intended meaning and respect any applicable trademark or copyright protections.
Always use accurate symbols to avoid confusing drivers.
How to Choose the Right Chrysler Pacifica Dashboard Symbol
The best dashboard symbol depends on what you’re trying to understand.
Consider these questions:
- Is it a red, yellow, or green symbol?
- Is it related to safety or convenience?
- Does it require immediate action?
- Can you safely continue driving?
- Does your owner’s manual explain it?
If a red warning light appears and you’re unsure what it means, it’s safest to stop driving until you’ve confirmed the issue.
FAQs
What is the most important Chrysler Pacifica dashboard warning light?
The Oil Pressure Warning, Brake Warning, Engine Temperature, and Check Engine Light are among the most important.
Red warning lights usually require immediate attention to prevent damage or ensure safe driving.
Can I drive with the Check Engine Light on?
If the light is steady, you can often drive cautiously to a repair shop.
If it flashes, reduce speed and have the vehicle serviced immediately because engine damage may occur.
Why is my tire pressure light on when the tires look fine?
Cold temperatures can lower tire pressure enough to trigger the TPMS warning.
Check all tires with a pressure gauge and inflate them to the recommended level listed on the driver’s door sticker.
What does the red battery symbol mean?
The battery warning light usually points to a charging system problem rather than a bad battery alone. The alternator, wiring, or drive belt may need inspection.
What is a simple dashboard symbol every driver should recognize?
The Check Engine Light is one of the simplest and most important symbols because it alerts drivers to engine or emissions problems before they become more serious.
Why does the traction control light flash?
A flashing traction control light means the system is actively improving traction on slippery roads. If it stays illuminated continuously, there may be a system malfunction.
Are dashboard symbols the same on every Chrysler Pacifica?
Most symbols remain consistent across model years, but newer Pacifica models, especially hybrid versions, may include additional indicators for advanced safety features and hybrid systems.
What should I do if a red warning light appears?
Safely pull over when possible, turn off the engine if necessary, and consult your owner’s manual.
Continuing to drive with certain red warnings may increase the risk of vehicle damage or unsafe driving conditions.
Final Thoughts
Learning Chrysler Pacifica dashboard symbols and meanings makes you a more confident and informed driver.
From simple reminders to urgent warning lights, every symbol is designed to help protect you, your passengers, and your vehicle.
The more familiar you become with these dashboard indicators, the easier it will be to respond quickly, maintain your Pacifica properly, and enjoy safer journeys wherever the road takes you.
.
